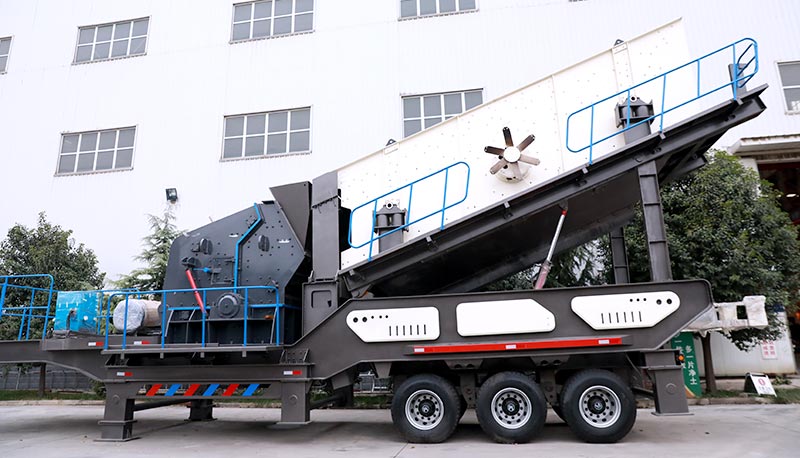

Mobile Crushing and Screening Plant

Mobile crushing screening plant mainly adopts an integrated operation method, which can be operated separately, eliminating complicated assembly and reducing labor consumption. It ensures the safety of equipment production and reliable performance.

Applications

Function

To crush stones ores from big size into required smaller size.

Fields

Used in mining, quarry, construction, road, recycling, etc.

Minerals Processed

over 120 kinds of stones and metallic ores.

Processing Materials of Mobile Crushing Screening Plant

It is widely used for primary secondary fine crushing of granite, river stone, quarry stone, rock, boulder, concrete, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.

  • undefined0-10mm
  • undefined10-20mm
  • undefined20-40mm
  • Finished Product
undefined

Working Principle of Mobile Crushing Screening Plant

The materials are uniformly transported into the crusher by the feeder. After the initial crushing by the jaw crusher, the closed circuit system is formed through the circular vibrating screen to realize the circular crushing of the materials. The materials after primary crushing will be conveyed out by belt conveyor, thus forming continuous crushing operation.

undefined

Advantages of Mobile Crushing Screening Plant

Unit integration

It can be directly operated, eliminating tedious infrastructure installation and labor time consumption

Hydraulic control system

The feeding guard is hydraulically raised and lowered, which is convenient for loading and unloading, convenient for fixing, stable and reliable.

Intelligent operation

One person can operate, the work is more stable, the overall output is increased, and the finished product has complete specifications and good particle shape.

Dual power drive

Switch freely between electtic power and diesel, keeping in good condition anytime and anywhere.

1
undefined

Hot Issues of Mobile Crushing Screening Plant

We have full models of mobile crushing screening plant for sale. Professional team will provide customized solution according to your needs.

Hot Sale Types of Mobile Crushing Screening Plant

Mobile jaw crusher, usually equipped with vibrating feeder, for primary crushing.

Mobile impact crusher, mobile cone crusher, usually with vibrating screen, for secondary fine crushing.

Hot Sale Capacity of Mobile Crushing screening plant

30-50t/h, 60-80t/h, etc, usually for small production scale, with low costs.

100-130t/h, 150-200t/h, 250-300t/h, etc, usually for medium and large production scale.

The estimated price of the service

Product price: Price range is about 4000-500,000 dollars. Click for specific price.

Get quotes

Technical parameters

Mobile Crushing and Screening Plant

Mobile Crushing and Screening Plant

Mobile Crushing and Screening Plant

Model FTM3S184F210 FTM3S185F214 FTM3S216F315 FTM3S184HD1110 FTM3S216HD1315
Transportation lenght(mm) 14600 15000 16000 16000 16000
Transportation Width(mm) 2800 2900 3100 3100 3100
Transportation Height(mm) 4400 4400 4550 4400 4550
Maximum Lenght(mm) 16000 16000 17000 16500 17000
Maximum Width(mm) 3800 3900 4600 3900 4600
Maximum Height(mm) 6500 6500 6900 6800 6900
Weight(t) 35 41.5 54 42 48.5
Tire Configuration Dualaxial Dualaxial Triaxial Triaxial Triaxial
Impact Crusher PF1210 PF1214 PF1315 HD1110 HD1315
Feeding belt conveyor B650×15M×2 B800×15M×2 B1000×15M×2 B800×15M×2 B1000×15M×2
Return belt conveyor B650×14M B800×14M B1000×16M B800×16M B1000×16M
Conveyor Belt For Final Product B500×15M×2 B500×15M×2 B650×15M×2 B500×15M×2 B650×15M×2
Under Vibrating Screen B800×7.5M B800×7.5M B1000×9M B800×8M B1000×9M
Vibrating Screen Model 3YZS1848 3YZS1854 3YZS2160 3YZS1848 3YZS2160
Model FTM3S185GYS300 FTM3S216GYS400 FTM3S216HP300
Transportation length(mm) 14500 15000 16000
Transportation Width(mm) 3000 3000 4550
Transportation Height(mm) 4400 4500 4600
Maximum Length(mm) 17000 16000 17000
Maximum Width(mm) 3400 3900 6900
Maximum Height(mm) 5800 6500 4700
Weight(t) 34.5 49.5 41
Tire Configuration Dualaxial Triaxial Triaxial
Cone crusher GYS300 GYS400 HP300
Discharging belt Conveyor B650×15M×2 B800×15M×2 B800×15M×2
Return belt conveyor B650×14M B800×14M B800×16M
CONveyor Belt For Final Products B500×15M B800×6M B650×15M×2
Under Virbrating Screen B800×7M B800×8M B800×9M
Vibrating Screen 3YK1854 3YK2160 3YK2160

MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS

Model FTM938F1210 FTM938FW1214 FTM1149F1315 FTM1349HD1110 FTM1349HD1315
Transportation Length（mm） 12000 12000 13900 15450 15450
Transportation Width（mm） 2550 2550 2900 2950 2950
Transportation Height（mm） 3900 3900 4450 4500 4500
Maximum Length（mm） 12500 12500 13900 15450 15450
Maximum Width（mm） 3250 3260 3250 3250 3250
Maximum Height（mm） 5100 5200 5200 5200 5200
Weight（t） 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size（mm） 350 350 500 400 700
Production Capacity（t/h） 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) （kw） 320 320 400 320 440
Iron Separator (Optional)（kw） RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model FTM938HD80 FTM1149HD98 FTM1349HD110 FTM1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12



Related Projects of Mobile Crushing Screening Plant

Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.

Company Strength

As leading manufacturer and supplier in China, we have three large sized modern workshops, more than 260000 square meters, reliable and trustworthy. We are dedicated to be responsible for every procedure, every product and every customer. We provide single equipment and full product plant at 100% factory price for you.
