Cone Crusher
-
Cone crusher, also known as spring cone crusher, is widely used for processing kinds of stones and ores, such as granite, limestone, quarry stones, gravel, basalt, aggregate, gold ore, iron ore, concrete, etc.
- Email Us: sales@sinoftm.com Enquiry Online
Hot Issues of Cone Crusher
Application of Cone Crusher
Cone crusher, commonly refer to spring cone crusher(PY series cone crusher), is a kind of crushing machine used in mining, quarry, construction, and other industries to process kinds of stones and ores.
| Stones | granite, basalt, quartz, gravel, bluestone, pebble, etc |
| Ores | gold ore, iron ore, copper ore, etc |
Types of Cone Crusher
The cone crusher produced by our company includes the following series: cone crusher, full hydraulic crusher, multi-cylinder hydraulic cone crusher, and single cylinder cone crusher. We will provide a customized solution according to your needs.

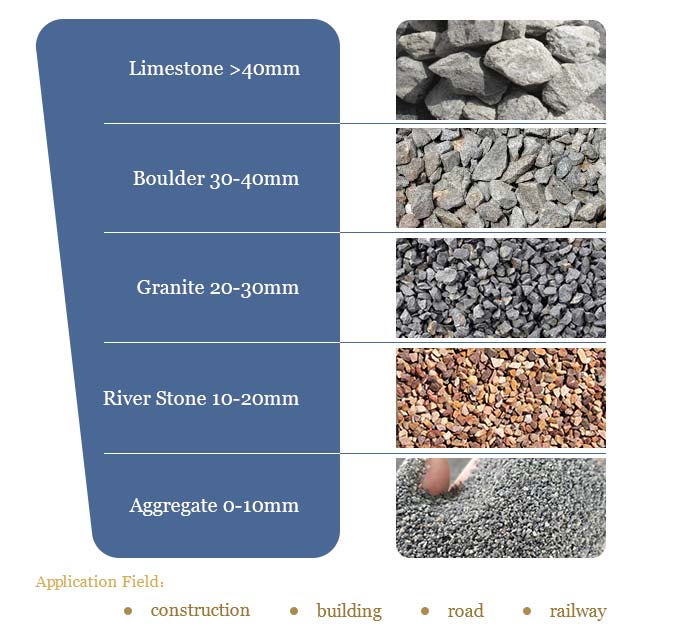

Final Output Size
About the final output size, the commonly seen output size types have 0-10mm, 10-20mm, 20-30mm, 30-40mm, etc. They can also be called 1/4”(6.35mm), 1/2”(12.7mm), 3/4”(19.05mm), G1(25mm), etc.
The final product with certain particle size can be used as aggregate in different industries, such as construction, building, road, railway, etc.
Technical Parameters
Cone Crusher
Multi-cylinder Hydraulic Cone Crusher
Cone Crusher
Single-cylinder Cone Crusher
| Specification | Model | Diameter of large end of crushing cone (mm) |
Max.feeding size(mm) |
Width of discharge opening (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Total weight （t） |
Dimensions (L×W×H) （mm） |
| Φ600 | PYB600 | 600 | 65 | 12-25 | 40 | 8P 30 | 5 | 2234×1370×1675 |
| PYD600 | 35 | 3-13 | 12-23 | 5.5 | 2234×1370×1675 | |||
| Φ900 | PYB900 | 900 | 115 | 15-50 | 50-90 | 8P 55 | 11.2 | 2692×1640×2350 |
| PYZ900 | 60 | 5-20 | 20-65 | 11.2 | 2692×1640×2350 | |||
| PYD900 | 50 | 3-13 | 15-50 | 11.3 | 2692×1640×2350 | |||
| Φ1200 | PYB1200 | 1200 | 145 | 20-50 | 110-168 | 8P 110 | 24.7 | 2790×1878×2844 |
| PYZ1200 | 100 | 8-25 | 42-135 | 25 | 2790×1878×2844 | |||
| PYD1200 | 50 | 3-15 | 18-105 | 25.3 | 2790×1878×2844 | |||
| Φ1750 | PYB1750 | 1750 | 215 | 25-50 | 180-360 | 8P 160 | 50.3 | 3910×2894×3809 |
| PYZ1750 | 185 | 10-30 | 80-210 | 50.3 | 3910×2894×3809 | |||
| PYD1750 | 85 | 5-13 | 60-180 | 50.2 | 3910×2894×3809 | |||
| Φ2200 | PYB2200 | 2200 | 300 | 30-60 | 420-700 | 8P 280-260 | 80 | 4622×3302×4470 |
| PYZ2200 | 230 | 10-30 | 130-410 | 80 | 4622×3302×4470 | |||
| PYD2200 | 100 | 5-15 | 80-200 | 81.4 | 4622×3302×4470 |
| Model | Cavity | Diameter of large end of crushing cone （mm） |
Width of Feeding Opening（mm） |
Max. feeding size (mm) |
Adjusting Range of Discharge Opening (mm) |
Processing capacity（t/h） |
Main motor power（kw） |
Weight of Main Machine （t） |
| FTMHP200 | C1 | 900 | 210 | 178 | 22~38 | 160~250 | 160 | 10.1 |
| C2 | 155 | 132 | 18~38 | 145~250 | ||||
| C3 | 130 | 110 | 14~38 | 120~250 | ||||
| F1 | 118 | 100 | 12~25 | 108~210 | ||||
| F2 | 90 | 76 | 10~25 | 81~210 | ||||
| F3 | 70 | 60 | 8~25 | 72~210 | ||||
| FTMHP300 | C1 | 1100 | 235 | 200 | 26~45 | 230~445 | 220 | 17.8 |
| C2 | 211 | 180 | 20~45 | 200~445 | ||||
| C3 | 135 | 115 | 16~45 | 180~445 | ||||
| F1 | 124 | 105 | 14~25 | 160~220 | ||||
| F2 | 96 | 82 | 12~25 | 140~220 | ||||
| F3 | 70 | 60 | 8~25 | 120~220 | ||||
| FTMHP400 | C1 | 1400 | 330 | 280 | 26~51 | 270~630 | 315 | 25 |
| C2 | 200 | 170 | 22~51 | 243~630 | ||||
| C3 | 152 | 130 | 16~51 | 210~630 | ||||
| F1 | 135 | 115 | 12~25 | 162~370 | ||||
| F2 | 106 | 90 | 10~25 | 126~370 | ||||
| F3 | 80 | 68 | 8~25 | 104~370 | ||||
| FTMHP500 | C1 | 1500 | 335 | 285 | 32~51 | 365~790 | 400 | 34.1 |
| C2 | 229 | 190 | 25~51 | 328~790 | ||||
| C3 | 180 | 152 | 19~51 | 280~790 | ||||
| F1 | 152 | 130 | 13~25 | 202~450 | ||||
| F2 | 124 | 105 | 10~25 | 158~450 | ||||
| F3 | 88 | 75 | 8~25 | 122~450 | ||||
| FTMHP800 | C1 | 2000 | 385 | 326 | 32~51 | 616~1100 | 630 | 69.2 |
| C2 | 350 | 298 | 25~51 | 522~1100 | ||||
| C3 | 280 | 238 | 16~51 | 380~1100 | ||||
| F1 | 160 | 136 | 13~25 | 328~730 | ||||
| F2 | 120 | 102 | 10~25 | 270~730 | ||||
| F3 | 90 | 77 | 8~25 | 166~730 |
| Type | Model | Diameter of large end of crushing cone（mm） |
Adjusting Range of Discharge Opening（mm） |
Feed opening size of the open edge when recommending the min. Discharge opening （mm） |
Max.feeding size（mm） |
Processing capacity （t/h） |
Main motor power （kw） |
Machine weight （kg） |
| PSG 900 | 0910 | 914 （3′） | 9-22 | 102 | 85 | 45-91 | 6P 75 | 9980 |
| 0917 | 13-38 | 175 | 150 | 59-163 | ||||
| 0904 | 3-13 | 41 | 35 | 27-90 | ||||
| 0906 | 3-16 | 76 | 65 | 27-100 | ||||
| PSG 1300 | 1313 | 1295 （4¼′） | 13-31 | 137 | 115 | 109-181 | 6P 160 | 22460 |
| 1321 | 16-38 | 210 | 178 | 132-253 | ||||
| 1324 | 19-51 | 241 | 205 | 172-349 | ||||
| 1306 | 3-16 | 64 | 54 | 36-163 | ||||
| 1308 | 6-16 | 89 | 76 | 82-163 | ||||
| 1310 | 8-25 | 105 | 89 | 109-227 | ||||
| PSG 1600 | 1620 | 1676 （5½′） | 16-38 | 209 | 178 | 181-327 | 6P 250 | 43270 |
| 1624 | 22-51 | 241 | 205 | 258-417 | ||||
| 1626 | 25-64 | 269 | 228 | 299-635 | ||||
| 1607 | 5-13 | 70 | 60 | 90-209 | ||||
| 1608 | 6-19 | 89 | 76 | 136-281 | ||||
| 1613 | 10-25 | 133 | 113 | 190-336 |
Technical parameters of SC series single cylinder hydraulic cone crusher:
| Model | cavities | Maximum Feeding Size（mm） | Minimum Discharging Size（mm） | install Power（kw） | capacity（t/h） |
| SC(S)100 | C1 | 250 | 22 | 90 | 85-170 |
| C2 | 200 | 19 | 90 | 70-130 | |
| SC(S)160 | C1 | 360 | 25 | 160 | 125-345 |
| C2 | 300 | 22 | 160 | 108-305 | |
| SC(S)250 | C1 | 450 | 35 | 250 | 267-605 |
| C2 | 400 | 29 | 250 | 225-515 | |
| SC(S)315 | C1 | 560 | 41 | 315 | 349-1050 |
| C2 | 500 | 38 | 315 | 318-892 |
SC-S series of single cylinder hydraulic cone crusher parameters:
| Model | cavities | Maximum Feeding Size（mm） | Minimum Discharging Size（mm） | install Power（kw） | capacity（t/h） |
| SC100 | F1 | 150 | 10 | 90 | 45-135 |
| F2 | 90 | 10 | 90 | 43-118 | |
| F3 | 50 | 6 | 90 | 36-71 | |
| SC160 | F1 | 200 | 13 | 160 | 69-215 |
| F2 | 115 | 10 | 160 | 57-184 | |
| F3 | 75 | 8 | 160 | 63-126 | |
| SC250 | F1 | 215 | 16 | 250 | 116-396 |
| F2 | 140 | 13 | 250 | 97-328 | |
| F3 | 70 | 8 | 250 | 95-252 | |
| SC315 | F1 | 275 | 16 | 315 | 177-662 |
| F2 | 175 | 16 | 315 | 162-552 | |
| F3 | 85 | 13 | 315 | 195-401 | |
| SC560 | F1 | 300 | 22 | 560 | 448-1512 |
| F2 | 195 | 19 | 560 | 380-1373 | |
| F3 | 90 | 13 | 560 | 357-912 | |
| SC750 | F1 | 370 | 25 | 750 | 394-2181 |
| F2 | 300 | 19 | 750 | 342-2020 | |
| F3 | 230 | 16 | 750 | 267-1814 | |
| F4 | 120 | 13 | 750 | 248-1165 | |
| F5 | 85 | 10 | 750 | 185-1170 |
